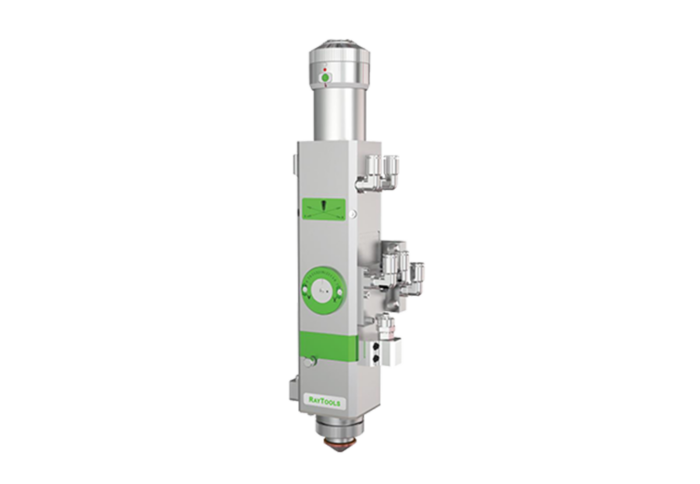

RayTools BT220 0-2kW Manual Focus Fiber Laser Cutting Head

RayTools BT220

The BT220 is a cutting head designed for low to medium power levels, with a power rating of 2kW. This product is equipped with multiple fiber interfaces, including QBH and QCS, making it compatible with various mainstream lasers. The optimized optical configuration and smooth, efficient airflow design significantly enhance cutting quality and efficiency.

Product Features

  • Cost-effective: The first choice for economical laser cutting equipment with power of 2000W and below.

  • Excellent Design: Optimized optical configuration and smooth and efficient airflow design significantly improve cutting quality and efficiency.

  • High Adaptability: It has a variety of optical fiber interfaces such as QBH, which can be adapted to various mainstream lasers.

  • Sophisticated Structure: Light weight and compact size reduce machine load requirements and improve cutting speed and quality.

Technical Data

Model RayTools BT220
Applicable Power ≤2000W
Fiber Interface QBH
Max Gas Pressure 25Bar
Collimating Focal Length F75 / F100
Focusing Focal Length F125 / F150
Horizontal Adjustment Range -1~ +1mm
Vertical Adjustment Range -8~ +7mm
Effective Aperture 25mm
Gross Weight 2.6kg

Product Structure

Product Dimensions
