Raytools BS06K 0-6KW Fiber Laser Cutting Head

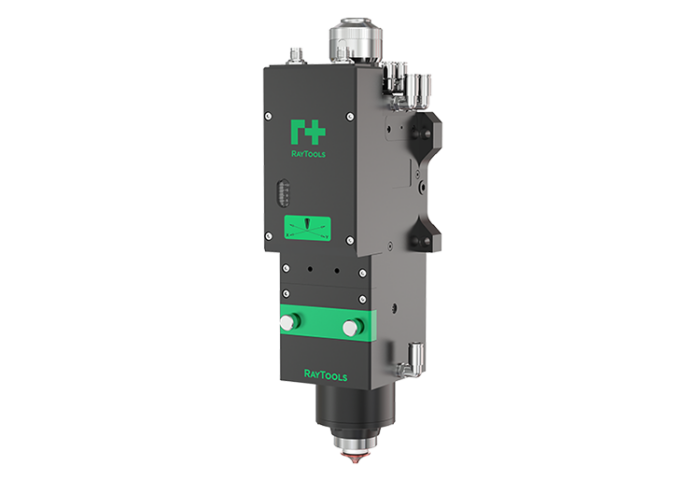

Raytools BS06K

The Raytools BS06K cutting head is lightweight, facilitating fast acceleration. Its optimized optical configuration and efficient airflow design significantly enhance both cutting quality and efficiency.

Send Request

Product Features

Fully integrated smart sensor technology enables real-time status monitoring via APP or CNC.
Communication and control are based on EtherCAT.
4-color LED lamps are employed to monitor interior status.
Continuous monitoring of optical lens and cover glass is ensured.
Gas pressure detection is implemented for enhanced functionality.

Technical Data

Model	Raytools BS06K
Fiber Interface	QBH/G5
Fiber Wavelength	1080nm
Laser Power	6kW
NA	0.13
Auto Focus Range (- level)	-1.5 ~ +1.5mm
Auto Focus Range (- vertical)	-17···+17mm (F150mm) / -32···+32mm (F200mm)
Cooling Water	Φ6, max. 5bar, min. 1.5L/min
Cutting Gas	Φ10, max. 25bar
Cooling Gas	Φ8, max. 5bar
Operating Voltage	24V±10%, max. 4A
I/O Interface (19-pin)	max. 30mA
Laser Cutting Head Weight	7KG
Install – Backplane Mounting Hole Screw Quantity / Size	4xM6
Install – Amplifier Mounting Hole Screw Quantity / Size	4xM3

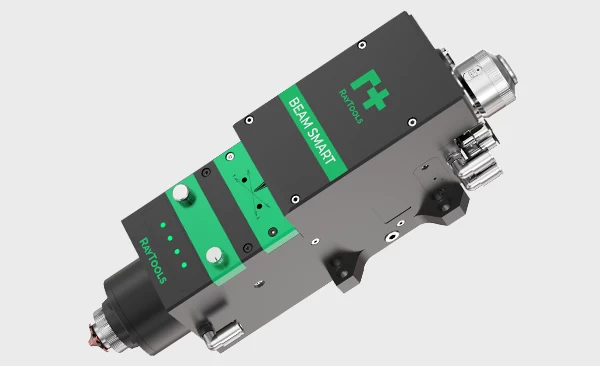

Product Details

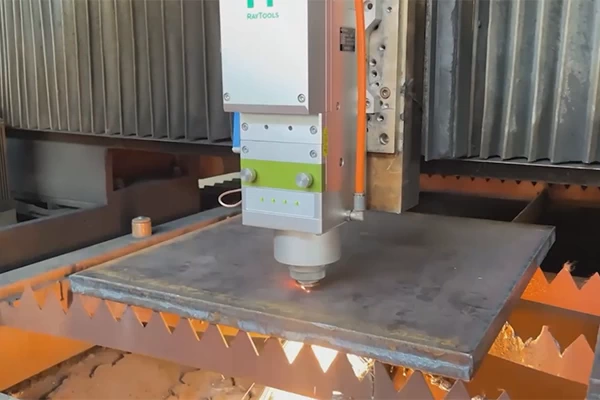

Excellent Design

Light-duty design to improve the machine acceleration; smooth and high-efficient nozzle cooling gas circuit instead of the traditional way of using air and the air compressor, with optimized optics system and excellent nozzle cooling structure to improve the stability, quality, and efficiency in cutting steel sheet.

High Adaptability

Fiber interfaces like QBH, QD, G5 to work with various prevailing lasers.

App Real-time Monitoring

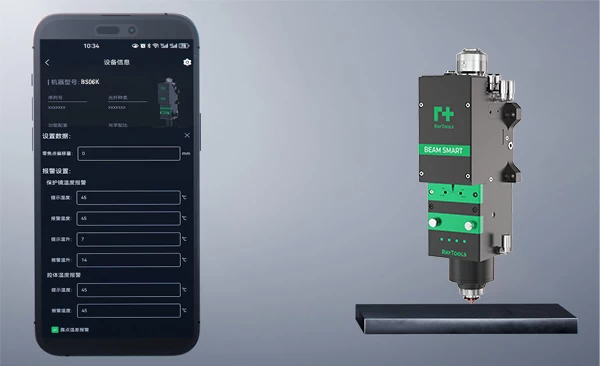

Through WLAN, the monitored data can be read on the mobile terminal and CNC system.

Real-time Data Feedback

Various built-in sensors provide real-time data feedback in processing, such as temperature inside the cutting head of the cover glass and focus lens, temperature and humidity of the cavity, and the gas pressure, etc.
