Raytools BM111 0-3.3kW Auto Focusing Fiber Laser Cutting Head

Raytools BM111

The Raytools BM111 Fiber Laser Cutting Head features an internal servo motor drive unit with a linear mechanism, enabling automatic adjustment of the focusing lens within a range of approximately 22mm. It can accommodate D30 composite lens groups for effective beam integration.

Product Features

  • Optimized optical configuration and streamlined, efficient airflow design.

  • Automatic focusing range: +10 to -12mm, with an adjustment accuracy of 0.05mm.

  • Equipped with D30 composite lens groups, supporting a maximum fiber power of up to 3kW.

  • Maximum acceleration of the focus lens driver: 10m/s², with a maximum speed of 10m/min.

  • Equipped with QBH, QD, and other fiber interfaces, enabling compatibility with various fiber lasers.

  • The drawer-type lens mount facilitates quicker and easier replacement of protective lenses.

  • Composite lens groups are employed for beam collimation and focusing, ensuring optimal optical quality and cutting effectiveness.

Product Details

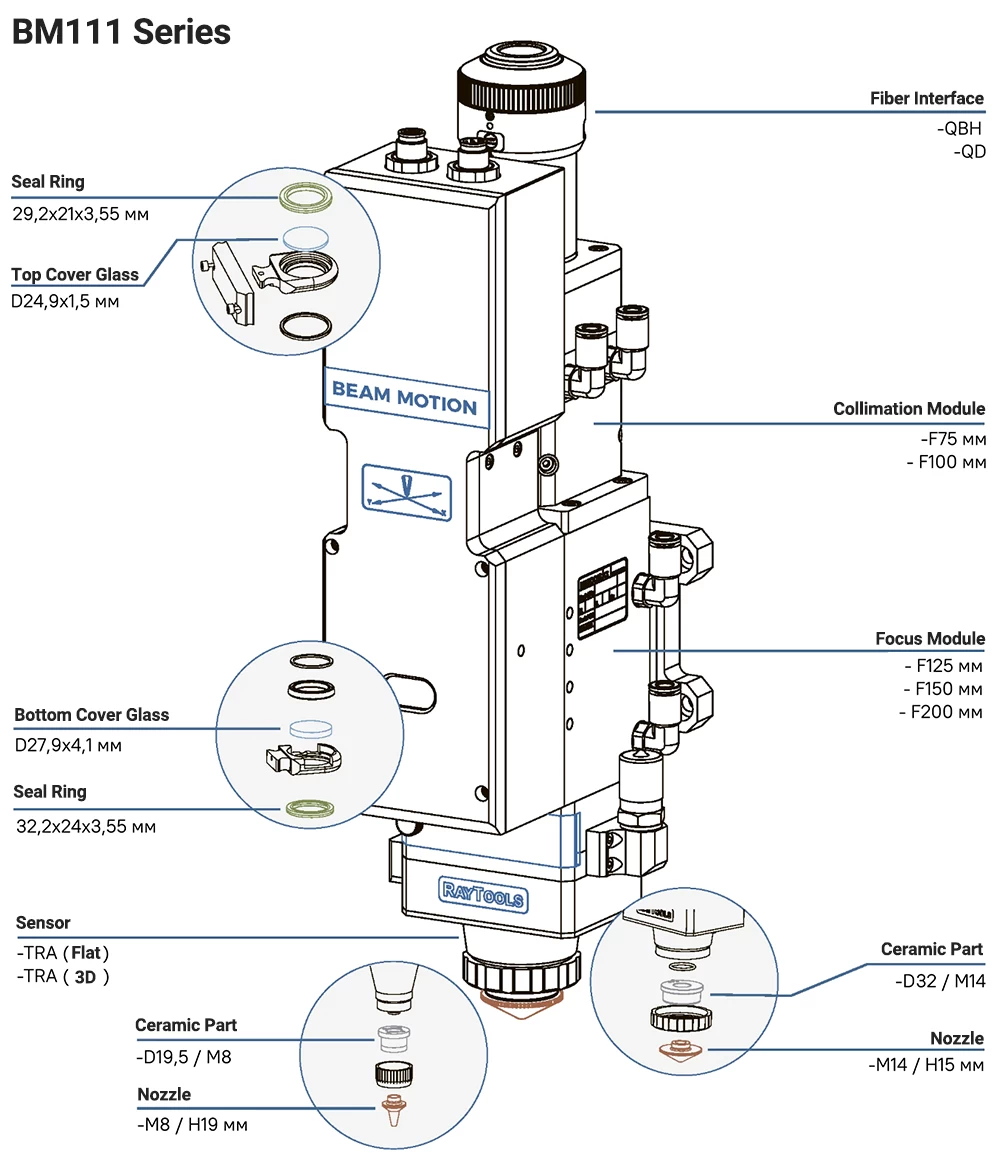

Multiple Protective Lenses

3 pieces of protective lenses, efficiently protecting collimating and focusing lenses.

High Dust Resistance

IP65 dustproof level, dustproof with no dead angles.

Auto Focus

Automatic focus reduces human intervention, focusing speed of 170mm/s, adjustment accuracy of 0.05mm.

High-Speed Cutting

Cutting speed: 0.7m/min for 12mm thick SUS304, 1.2m/min for 12mm thick Q235.

Technical Data

Model Raytools BM111
Power Rating ≤3.3kW
Clear Aperture 25mm
Collimating Protective Glass Φ24.9mm*1.5mm
Focusing Protective Glass Φ27.9mm*4.1mm
Collimating Lens D30 F100mm
Focusing Lens D30mm F125mm/F155mm/F200mm
Auto Focus Range +10~-12mm
Assist Gas Pressure ≤30bar

Product Dimensions
