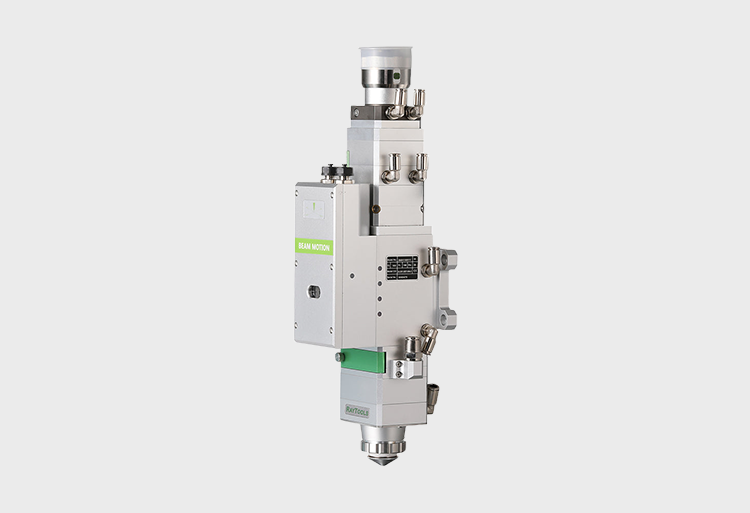

Raytools BM110 0-3.3KW 2D AutoFocus Fiber Laser Cutting Head

Raytools BM110

The Raytools BM110 2D AutoFocus Fiber Laser Cutting Head features an optimized optical configuration and efficient airflow design for superior performance. With automatic focusing range adjustment, D30 composite lens groups enabling high fiber power, and maximum acceleration of the focus lens driver, it ensures precise and rapid cutting operations.

Product Features

  • Optimized optical configuration and smooth, efficient airflow design.

  • Automatic focusing range of +10 to -12mm with adjustment accuracy of 0.05mm.

  • Equipped with D30 composite lens groups, enabling a maximum fiber power of up to 3.3KW.

  • Maximum acceleration of focus lens driver is 10m/s^2, with a maximum speed of 170mm/s.

  • Additional cover glass above the collimator effectively prevents damage to the collimating lens from dust.

  • Equipped with fiber interfaces such as QBH, QD, allowing adaptation to various fiber laser sources.

Technical Data

Model Raytools BM110
Power Rating ≤3.3kW
Fiber Interface QBH
Collimator Focal Length D30-C100
Focusing Lens D30-F125/F155/F200
Protective Windows D24.9*1.5 (Upper); D27.9*4.1 (Lower)
Nozzle Styles Single Layer, Double Layer
Nozzle Caliber 1.0-5.0mm
Ceramics Type LCO3D32R01O3P

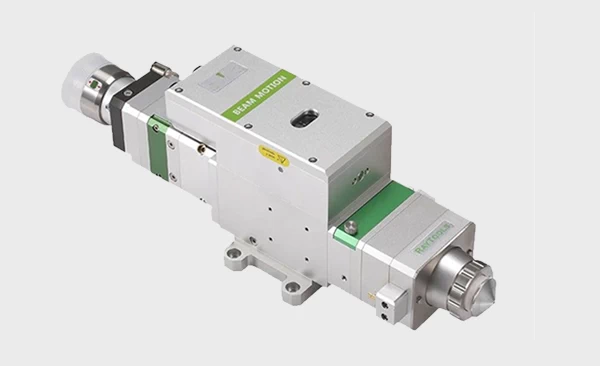

Product Details

Excellent Design

Optimized optical configuration and smooth, efficient airflow design significantly enhance cutting quality and efficiency.

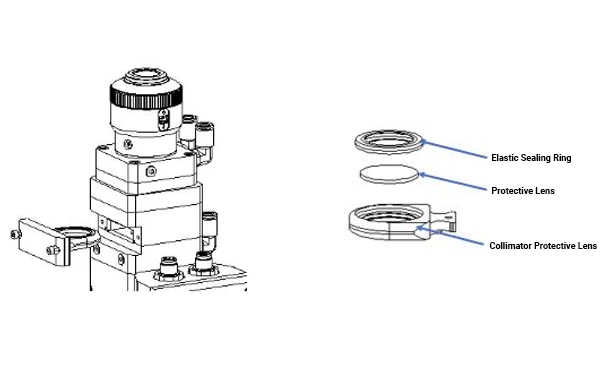

Multiple Protective Lenses

Additional protective lenses for collimation effectively safeguard collimating lenses.

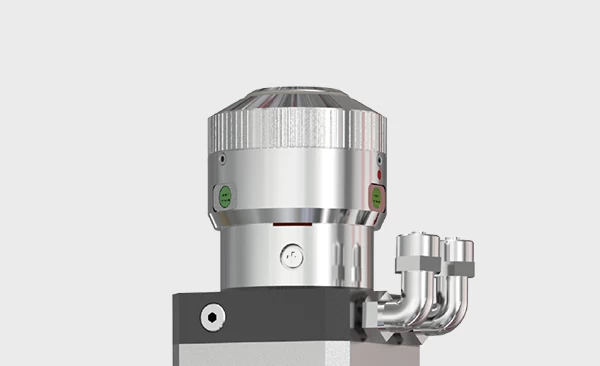

Auto-Focus

Automated focusing reduces manual intervention, with an automatic focusing range of -12 to +10 mm and a focusing accuracy of 0.05 mm.

High Compatibility

Features QBH and QD fiber interfaces, adaptable to various mainstream lasers.

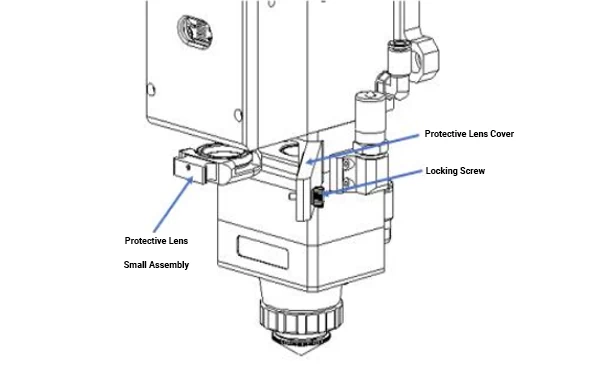

Drawer-Type Lens Mount

Allows for quick and easy replacement of protective lenses.

Product Dimensions

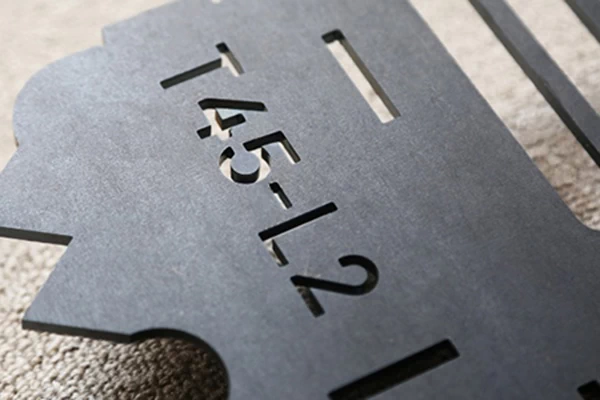

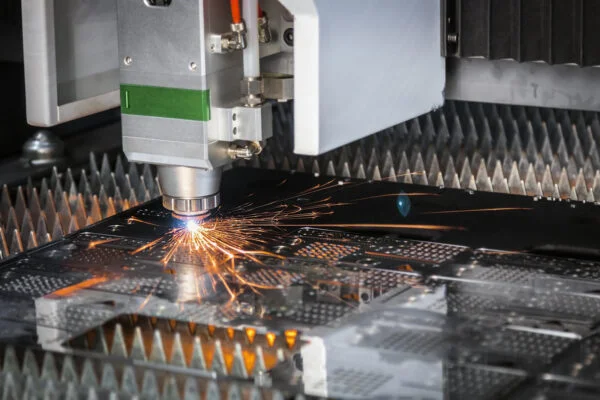

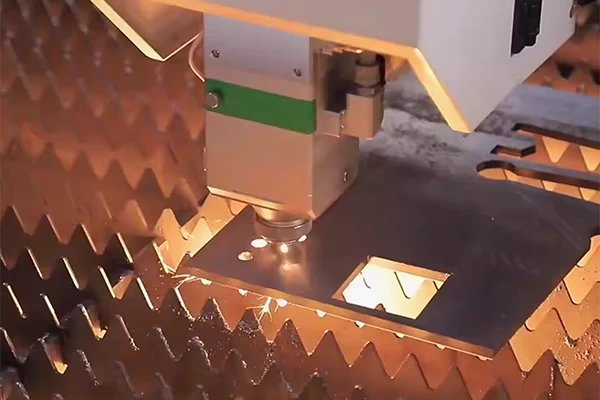

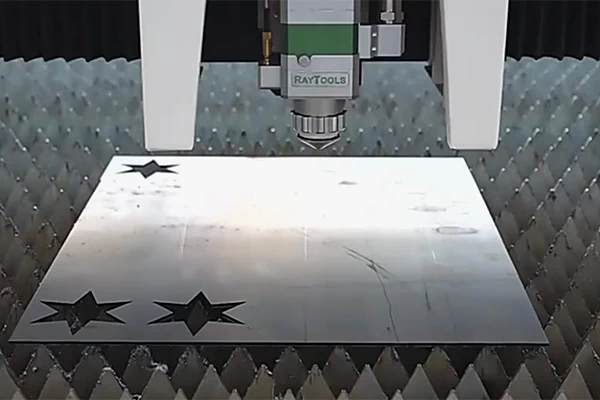

Applications
