Raytools BM06K 0-6KW Fiber Laser Cutting Head

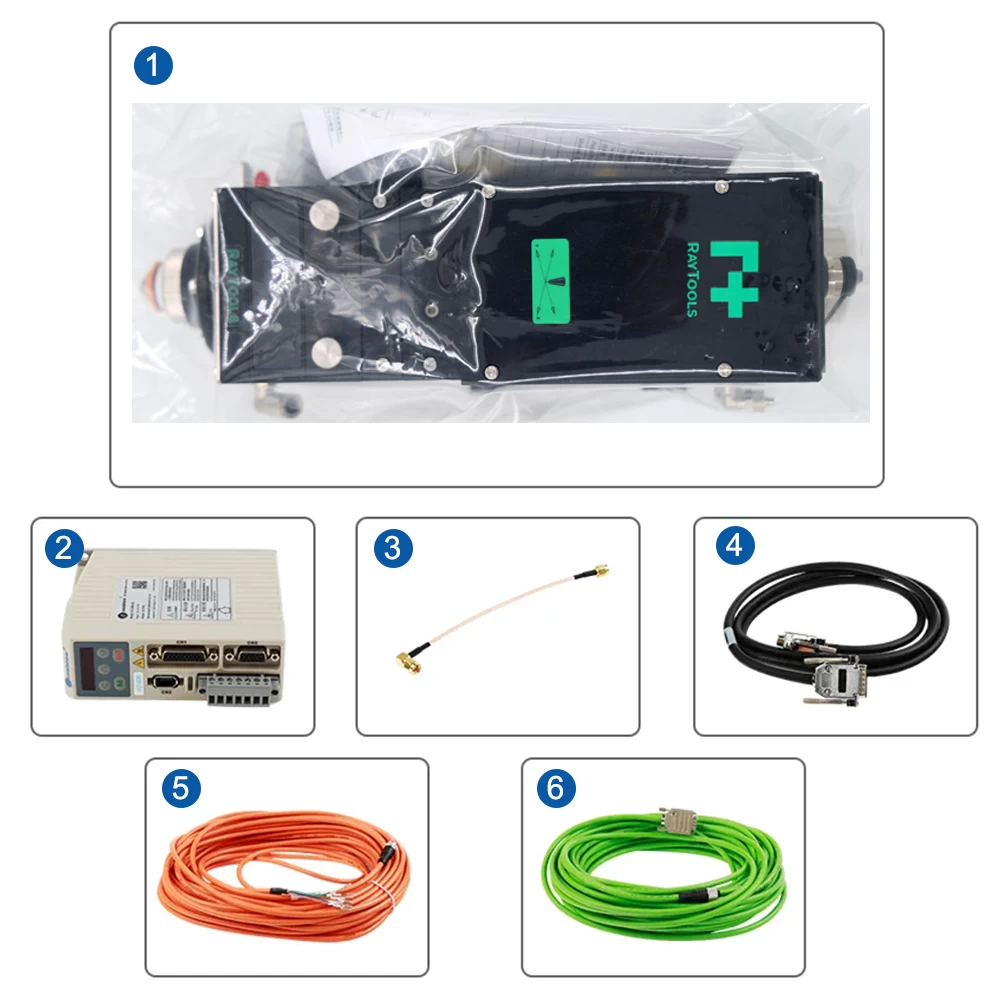

Raytools BM06K

The Raytools BM06K Fiber Laser Cutting Head is engineered for superior cutting efficiency and durability. It incorporates a dedicated cooling structure and air cooling system, ensuring optimal temperature control to extend the lifespan of critical components. Its innovative autofocus mechanism enables rapid and precise focusing, enhancing cutting speed and accuracy across a wide range of materials.

Product Features

  • Efficient Cooling: Cooling structure for both collimation module and focus module. And air cooling to nozzle effectively protects the nozzle & ceramic part and extends the lifespan.

  • Multiple Cover Glasses: 4 cover glasses designed to effectivelydecrease contamination risk during replacement of fiber & cover glass and extend the lifespan of collimation lens and focus Iens.

  • Fast Focusing: Autofocus bymoving collimation lens to achieve higher speeda nd bigger autofocus range.

  • Intelligent Monitoring: Monitoring to temperature of bottom cover glass could be accessed through mobile APP or computer in real-time.

  • Optimized Structural Design: Integrated design to ensure sealing. Improved fiber interface (QBH, QD, G5）to benefit their compatibility of lasers and rprevent from being stuck for leaks and rusts.

Product Details

Efficient Cooling

Both the collimating and focusing lens groups feature cooling structures, supplemented by nozzle cooling airflow, effectively protecting nozzles and ceramic components, extending continuous operation time.

Multiple Protective Lenses

Designed with four protective lenses, effectively reducing contamination during fiber and lower protective lens replacements, prolonging the lifespan of collimating and focusing lenses.

Quick Focus Adjustment

Utilizes collimating focus adjustment, which moves the focal point faster and over a larger range compared to focusing adjustment.

Intelligent Monitoring

Includes lower protective lens temperature monitoring functionality, enabling real-time temperature data display via mobile app or computer desktop window, with over-temperature output alarms to effectively protect the cutting head optical path system.

Optimized Structural Design

Integrated body design ensures sealing. Improved QBH and G5 fiber interfaces enhance compatibility with lasers and prevent jamming due to issues like water leakage and rust.

Technical Data

Model Raytools BM06K
Fiber Interface QBH/QD/G5
NA 0.14
Auto Focus Range (Horizontal) -1.5 ~ +1.5mm
Auto Focus Range (Vertical) -17 ~ +17mm (F150mm) / -32 ~ +32mm (F200mm)
Nozzle Styles Single, Double, Boost
Diameter of Nozzle Tip Single (1.2-5mm), Double (1-1.8mm), Boost (1.6-7mm)
Operating Voltage 24V±10%, max.4A
I/O Interface (19-pin) Output current must be less than 30mA
Laser Cutting Head Weight 7KG

Product Dimensions
