Product Features
Technical Data
| Model | RFL-C020H-CE |
|---|---|
| Average Output Power (W) | 1500±50 |
| Central wavelength (nm) | 1080±5 |
| Maximum Modulation Frequency (kHz) | 5 |
| Output Power Instability | ±1% |
| Red Laser | Yes |
| Output Connector | IQB (customizable) |
| Output Fiber Core Diameter (μm) | 25 (customizable) |
| Beam Quality | ≤1.8 M² |
| Polarization State | Random |
| Output Fiber Length (m) | 10 (customizable) |
| Input Power (V AC ) | 220±10%, Three Phase-four Wire Connect |
| Control Mode | Control Line / Bluetooth |
| Power Adjustment Range (%) | 2-100 |
| Dimensions (mm) | 340*390*80 |
| Weight (kg) | <20 |
| Cooling Method | Water cooling |
| Working Temperature (℃ ) | 10-40 |
Applications
Metal Welding
Handheld Laser Welding Samples 1

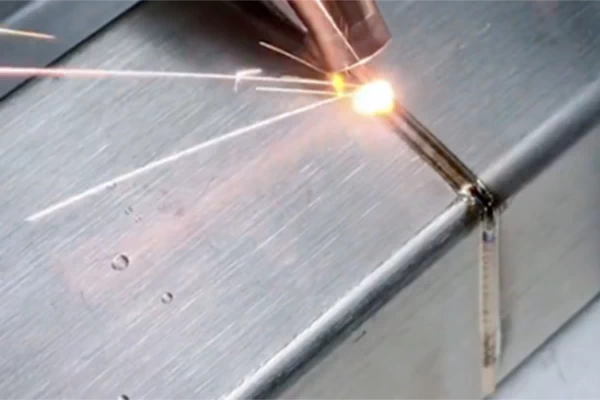

Handheld Laser Welding Samples 2
Handheld Laser Welding Samples 3
Yupec Laser is a leading provider of advanced fiber laser solutions in Europe, specializing in the sales, technical support, and service of Raycus fiber lasers.
With years of experience and a team of industry experts, we will be happy to help you with all your laser and laser application needs.
For more information about our products and services, please feel free to get in touch with us. We look forward to collaborating with you and driving innovation together.
